Product Summary

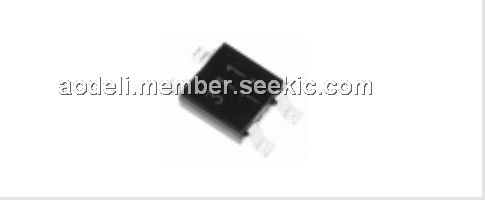

The HG-166A is a GaAs Hall Element.

Parametrics

HG-166A absolute maximum ratings: (1)max input voltage, VC: 12V; (2)max input power, PD: 150mW; (3)operating temperature range, Topr: -40 to 125℃; (4)storage temperature range, Tstg: -40 to 150℃.

Features

HG-166A features: (1)output hall voltage, VH: 78 to 102mV when B=50mT, Vc=6V; (2)input resistance, Rin: 1000 to 1500Ω, 1250Ω typ when B=0mT, Ic=0.1mA; (3)output resistance, Rout: 1800 to 3000Ω, 2500Ω typ when B=0mT, Ic=0.1mA; (4)offset voltage, Vos(Vu): -8 to 8mV when B=0mT, Vc=6V; (5)temp coefficient of VH, σVH: -0.06%/℃ when B=50mT, Ic=1mA, Ta=25 to 125℃; (6)temp cofficient of Rin, σRin: 0.3%/℃ when B=50mT, Ic=1mA, Ta=25 to 125℃; (7)linearity, △K: 2% when B=0.1/0.5T, Ic=1mA.

Diagrams

HG-166A dimensional drawing

HG-10
HG-10


HOLE GROMMET 55/64"DIA .75"HOLE

Data Sheet

0-1000: $0.10
HG-1000S000-U
HG-1000S000-U


JOYSTICK SERIESIV 2AXIS BALL TIP

Data Sheet

0-1: $247.55
1-10: $237.32
10-25: $232.67
HG-1012JA
HG-1012JA

Other


Data Sheet

Negotiable
HG-1012JA 20.0480M-BX0
HG-1012JA 20.0480M-BX0

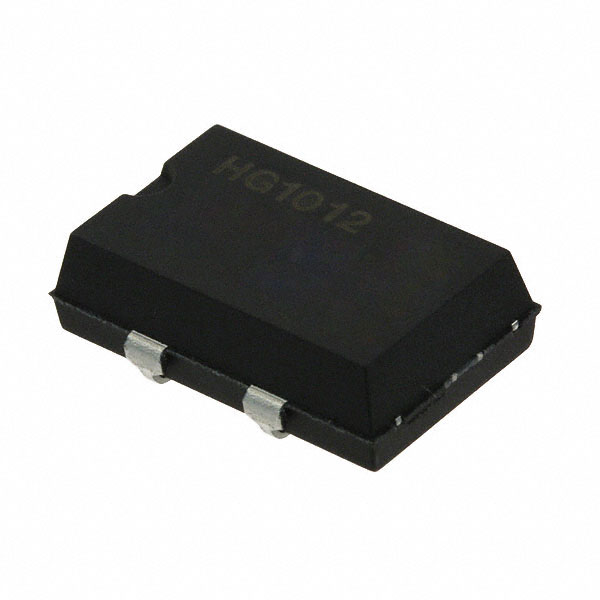

OSC HIGH STAB 20.0480MHZ SMD
