Product Summary

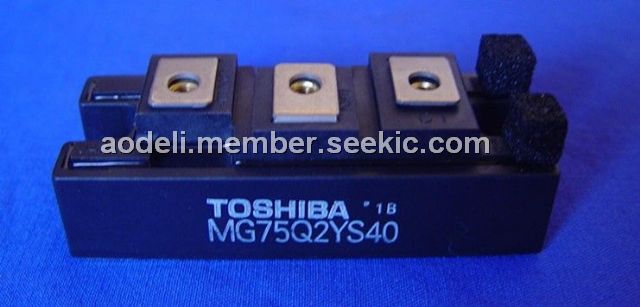

The MG75Q2YS40 is a Silicon N Channel IGBT module. It is designed for High Power Switching Applications, Motor Control Applications.

Parametrics

MG75Q2YS40 absolute maximum ratings: (1)Collector emitter Voltage: 1200V; (2)Gate Emitter Voltage: ±20V; (3)Collector Current, DC IC: 75A; 1ms ICP: 150A; (4)Collector Power dissipation, Pc: 560w; (5)junction Temperature, Tj: 160℃; (6)Storage Temperature range: -40 to 125℃; (7)isolation Voltage: 2500V; (8)screw torque: 3/3 Nm.

Features

MG75Q2YS40 features: (1)High input impednace; (2)high speed: tf=0.5 μs; (3)Low saturation voltage: 4.0V; (4)enhancement mode; (5)The electrodes are Isolated from case.

Diagrams

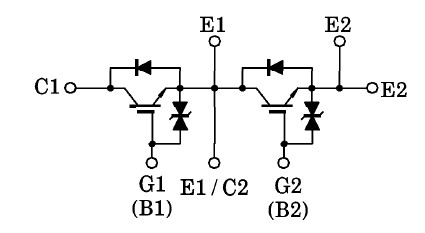

MG75Q2YS40 diagram
