Product Summary

The NMH2412SC is an industrial temperature range DC-DC converter. It is ideally suited for providing dual rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 2W. Pin compatibility with the NMH2412SC ensures minimal effort in upgrading distributed power systems.

Parametrics

NMH2412SC absolute maximum ratings: (1)Lead temperature 1.5mm from case for 10 seconds: 300℃; (2)Internal power dissipation: 300mW; (3)Input voltage VIN: 28V.

Features

NMH2412SC features: (1)Wide Temperature performance at full 2 Watt load, –40 to 85℃; (2)Dual Output from a Single Input Rail; (3)Industry Standard Pinout; (4)Power Sharing on Output; (5)1kVDC Isolation; (6)Efficiency to 86%; (7)Power Density up to 1.44W/cm3; (8)5V, 12V, 24V & 48V Input; (9)5V, 9V,12V and 15V Output; (10)Footprint from 1.46cm2; (11)UL 94V-0 Package Material; (12)No Heatsink Required; (13)Internal SMD Construction; (14)Toroidal Magnetics; (15)Fully Encapsulated; (16)No External Components Required; (17)MTTF up to 2.0 Million hours; (18)Custom Solutions Available; (19)No Electrolytic or Tantalum Capacitors.

Diagrams

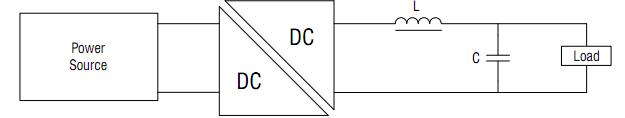

NMH2412SC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

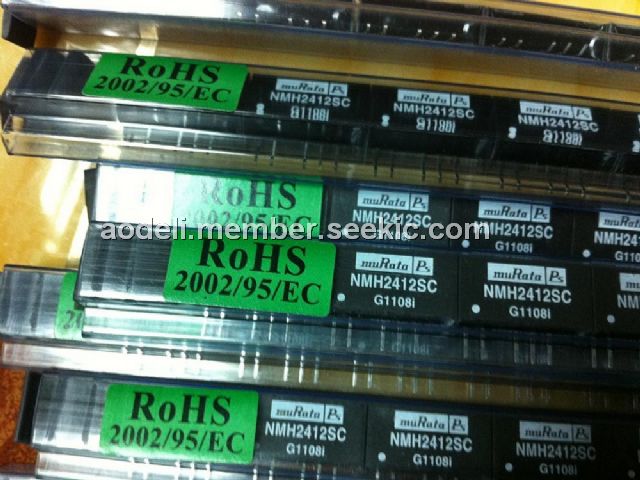

NMH2412SC
NMH2412SC

Murata Power Solutions

DC/DC Converters 2W DUAL OUT 24-12V Dual Output

Data Sheet

0-1: $7.92
1-5: $7.88
5-10: $7.82
10-25: $7.74
