Product Summary

The 10SVP56M is a Standard SMD type capacitor.

Parametrics

10SVP56M absolute maximum ratings: (1)Capacitance: 56μF; (2)Capacitance Tolerance: ± 20%; (3)Voltage Rating: 10V; (4)ESR: 0.045ohm; (5)Life Time @ Temperature: 2000 hours @ 105℃; (6)Height: 5.9mm; (7)Diameter: 6.3mm; (8)Operating Temperature Range: -55 to +105℃; (9)AC Ripple Current: 1700mA; (10)Capacitor Mounting: SMD; (11)External Depth: 6.6mm; (12)External Length / Height: 5.9mm; (13)External Width: 6.6mm; (14)Package / Case: C6; (15)Series: SVP; (16)Termination Type: SMD; (17)Tolerance +: 20%; (18)Tolerance -: 20%; (19)Voltage Rating V DC: 10V.

Features

10SVP56M features: (1)Standard SMD type product; (2)Use for surface mounted type switching power supplies; (3)This product can support lead free-reflow.

Diagrams

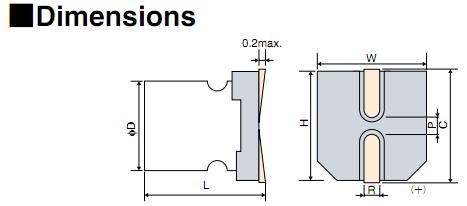

10SVP56M dimensions
