Product Summary

The SYN500R is a general purpose, 3V-5.5V ASK Receiver that operates at 300-450MHz with typical sensitivity of -109dBm. The SYN500R functions as a super-heterodyne receiver for OOK and ASK modulation up to 10kbps. The down-conversion mixer also provides image rejection. All post-detection data filtering is provided on the SYN500R. Any one-of-four filter bandwidths may be selected externally by the user in binary steps, from 1.25KHz to 10KHz. The user need only configure the device with a set of easily determined values, based upon data rate, code modulation format, and desired duty-cycle operation. The applications of the SYN500R include Automotive Remote Keyless Entry (RKE), Remote controls, Remote fan and light control, Garage door and gate openers.

Parametrics

SYN500R absolute maximum ratings: (1)Supply Voltage (VDD): +7V; (2)Input Voltage: +7V; (3)Junction Temperature (TJ): +150℃; (4)Storage Temperature Range (TS): –65℃ to +150℃; (5)Lead Temperature (soldering, 10 sec.): +260℃; (6)Maximum Receiver Input Power: +10dBm.

Features

SYN500R features: (1)-109 dBm sensitivity, 1kbps and BER 10E-02; (2)Frequency from 300MHz to 450MHz; (3)Supply Voltage from 3V to 5.5V; (4)Image Rejection Mixer Data-rate up to 10kbps (fixed-mode); (5)Low power, 6.0mA, 3.3V @ 433.92MHz, 3.9mA, 3.3V@315MHz, continuous on data rates to 10kbps (Manchester Encoded); (6)Analog RSSI Output; (7)No IF filter required; (8)Excellent selectivity and noise rejection.

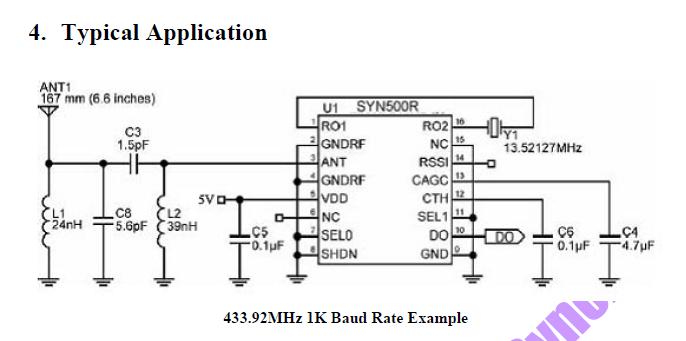

Diagrams
