Product Summary

The 1N4007 is a general purpose rectifier.

Parametrics

1N4007 absolute maximum ratings: (1)Peak repetitive reverse voltage: 1000 V; (2)Average rectified forward current: 1.0 A; (3)Non-repetitive peak forward surge current: 30 A; (4)Rating for fusing: 3.7 A; (5)Storage temperature range: -55℃ to 175℃; (6)Operating junction temperature: -55℃ to 175℃.

Features

1N4007 features: (1)low forward volage drop.; (2)high surge current capability.

Diagrams

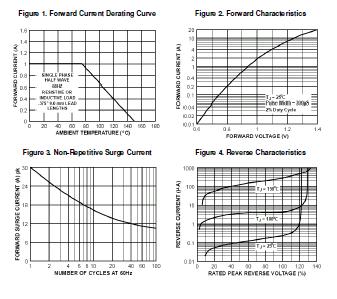

1N4007 waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1N4007
1N4007

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.08
1-25: $0.08
25-100: $0.05
100-250: $0.03
1N4007/1
1N4007/1

Vishay Semiconductors

Rectifiers Vr/1000V Io/1A BULK

Data Sheet

Negotiable
1N4007/54
1N4007/54


RECTIFIER 1A 1000V DO-41

Data Sheet

Negotiable
1N4007/L
1N4007/L

Other


Data Sheet

Negotiable
1N4007_Q
1N4007_Q

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.01
1-25: $0.01
25-100: $0.01
100-500: $0.01
1N4007-19
1N4007-19

Taiwan Semiconductor

Rectifiers 1A,1600V,Std SILASTIC Rect

Data Sheet

0-20000: $0.01
1N4007A
1N4007A

Other


Data Sheet

Negotiable
1N4007-B
1N4007-B

Rectron

Rectifiers Vr/1000V Io/1A BULK

Data Sheet

0-1: $0.02
1-100: $0.01
100-500: $0.01
500-1000: $0.01
