Product Summary

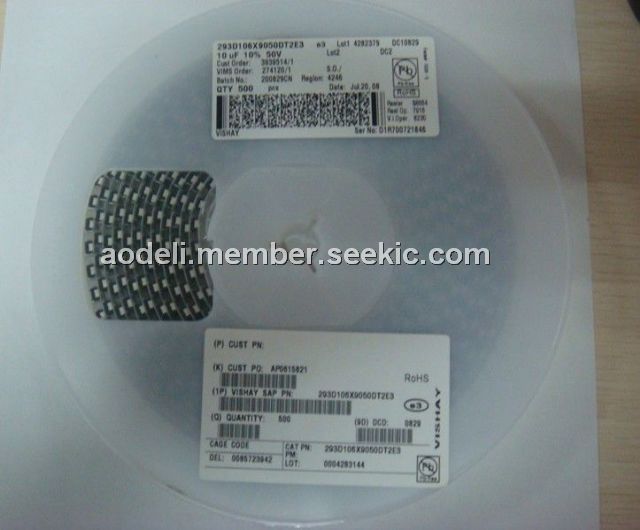

The 293D106X9050D2TE3 is a Solid Tantalum Surface Mount Chip Capacitor. It is applicated for Industrial, Telecom infrastructure and General purpose.

Parametrics

293D106X9050D2TE3 absolute maximum ratings: (1)Operating Temperature: - 55℃ to + 85℃(to + 125 °C with voltage derating); (2)Capacitance Range: 0.10 μF to 1000 μF; (3)Capacitance Tolerance: ± 5 %, ± 10 % , ± 20 %; (4)Voltage Rating: +4 V to +63 V.

Features

293D106X9050D2TE3 features: (1)Molded case available in six case codes; (2)Terminations: 100 % matte tin, standard,tin/lead available; (3)Compatible with "High Volume" automatic pick and place equipment; (4)Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements; (5)Moisture sensitivity level 1; (6)Optical character recognition qualified; (7)Compliant terminations; (8)Material categorization: For definitions of compliance.

Diagrams

293D106X9050D2TE3 waveform

293D
293D
