Product Summary
The THS8200PFP is a complete video back-end D/A solution for DVD players, personal video recorders and set-top boxes, or any system requiring the conversion of digital component video signals into the analog domain.
Parametrics
Absolute maximum ratings: (1)Supply voltage: AVDD to AVSS, VDD_IO to GND_IO: -0.5 V to 4.5 V; (2)DVDD to DVSS, VDD_DLL to DVSS: -0.5 V to 2.5V; (3)Digital input voltage range to DVSS: -0.5 V to VDD_IO + 0.5 V; (4)Operating free-air temperature range, TA: 0℃ to 70℃; (5)Storage temperature range, Tstg: -55℃ to 150℃.
Features
Features: (1)Three 11-bit 205-MSPS D/A converters with integrated bi-level/tri-level sync insertion; (2)Support for all ATSC video formats (including 1080P) and PC graphics formats (up to UXGA at 75 Hz); (3)Flexible 10/15/16/20/24/30-bit digital video input interface with support for YCbCr or RGB data, either 4:4:4 or 4:2:2 sampled; (4)Video synchronization via Hsync, Vsync dedicated inputs or via extraction of embedded SAV/EAV codes according to ITU-R.BT601 (SDTV) or SMPTE274M/SMPTE296M (HDTV); (5)Glueless interface toTI DVI 1.0 (with HDCP) receivers. Can receive video-over-DVI formats according to the EIA-861 specification and convert to YPbPr/RGB component formats with separate syncs or embedded composite sync.

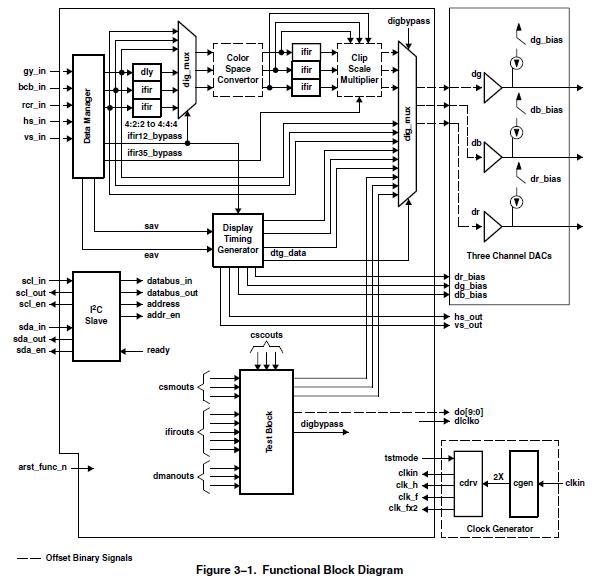

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS8200PFP |
Texas Instruments |
Video D/A Converter ICs TRIPLE 10-BIT ALL FORMAT VIDEO DAC |
Data Sheet |
|
|
||||||||||||
 |
THS8200PFPG4 |
Texas Instruments |
DAC (D/A Converters) TRIPLE 10-BIT ALL FORMAT VIDEO DAC |
Data Sheet |
Negotiable |
|
||||||||||||
