Product Summary

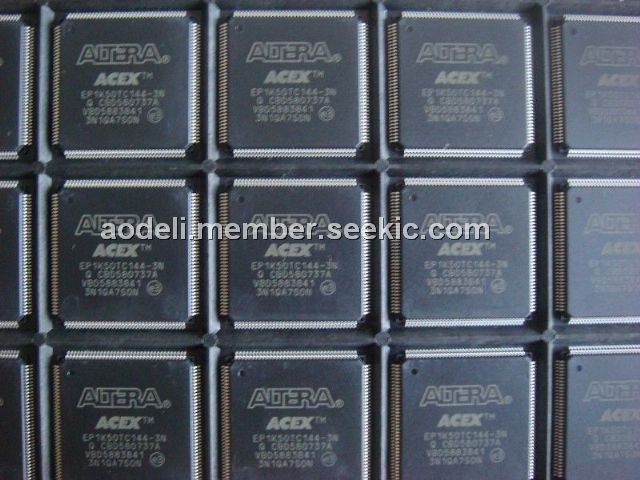

The EP1K50TC144-1 is a Programmable Logic Device. It provides a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs. LUT-based logic provides optimized performance and efficiency for data-path, register intensive, mathematical, or digital signal processing (DSP) designs, while EABs implement RAM, ROM, dual-port RAM, or first-in first-out (FIFO)functions. These elements make the EP1K50TC144-1 suitable for complex logic functions and memory functions such as digital signal processing, wide data-path manipulation, data transformation and microcontrollers, as required in high-performance communications applications. The applications of EP1K50TC144-1 include: 16-bit, 8-tap parallel finite impulse response (FIR)filter; 8-bit, 512-point Fast Fourier transform (FFT)function; a16450 universal asynchronous receiver/transmitter (UART).
Parametrics
EP1K50TC144-1 absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground (2): min=-0.5V, max=3.6V; (2)VCCIO Supply voltage With respect to ground (2): min=-0.5V, max=4.6V; (3)VI DC input voltage: min=2.0V, max=5.75V; (4)IOUT DC output current, per pin: min=-25mA, max=25mA; (5)TSTG Storage temperature No bias: min=-65℃, max=150℃; (6)TAMB Ambient temperature Under bias: min=-65℃, max=135℃; (7)TJ Junction temperature PQFP, TQFP, and BGA packages, under bias: max=135℃.
Features
EP1K50TC144-1 features: (1)Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device; (2)High density; (3)Cost-efficient programmable architecture for high-volume applications; (4)System-level features; (5)Extended temperature range.

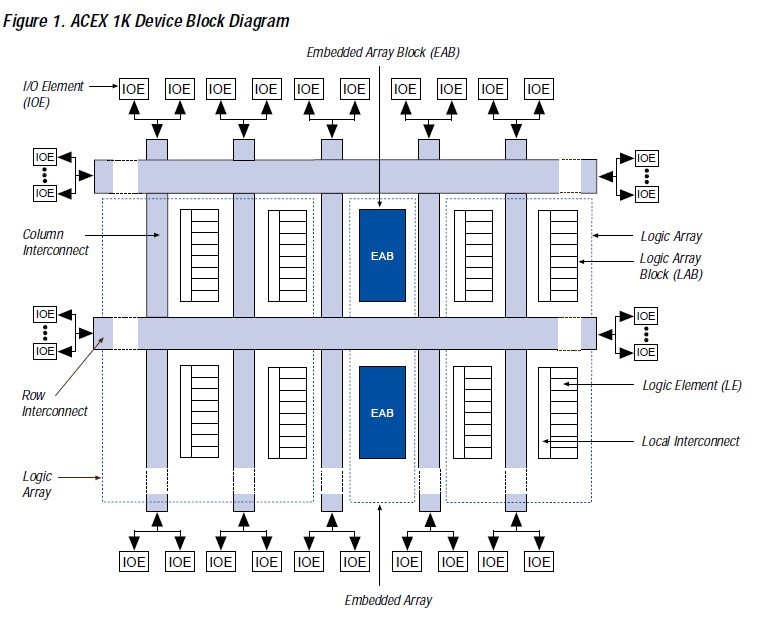

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1K50TC144-1 |
|
IC ACEX 1K FPGA 50K 144-TQFP |
Data Sheet |
|
|
||||||
|
EP1K50TC144-1N |
|
IC ACEX 1K FPGA 50K 144-TQFP |
Data Sheet |
|
|
||||||
