HD64F2633F25IV

microcomputer, QFP, –0.3 to +4.3 V, Burst ROM directly connectable, Wide-range, HD64F2633F25IV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $9.00~13.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $9.00~13.00

PartNumber:: HD64F2633F25IV

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tesi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-07

From Other Seller

Part Number:HD64F2633F25IV
US $9.00 - 13.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

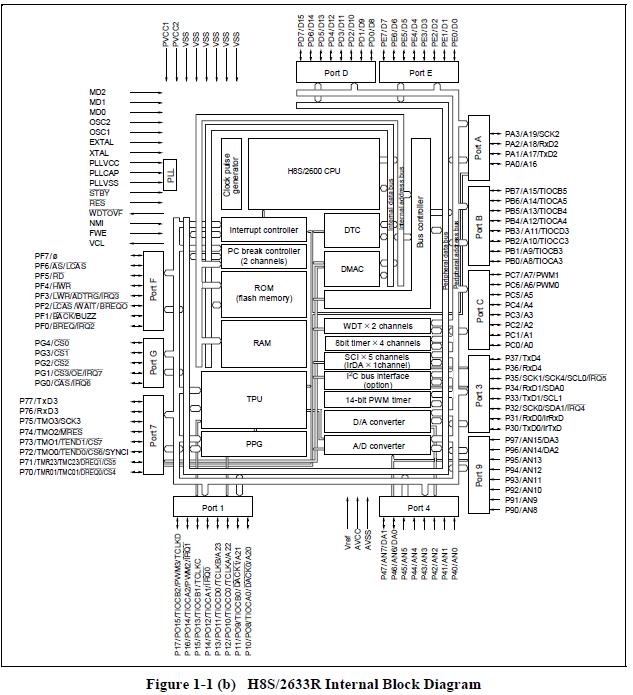

The HD64F2633F25IV is a microcomputer. The HD64F2633F25IV CPU has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise, optimized instruction set designed for high-speed operation, and can address a 16-Mbyte linear address space. The instruction set of is upward-compatible with H8/300 and H8/300H CPU instructions at the object-code level, facilitating migration from the HD64F2633F25IV.

Parametrics

HD64F2633F25IV absolute maximum ratings: (1)Power supply voltage, VCC:–0.3 to +4.3 V; (2)Input voltage (XTAL, EXTAL, OSC1, OSC2), Vin: –0.3 to VCC +0.3V; (3)Input voltage (ports 4 and 9), Vin: –0.3 to AVCC +0.3 V; (4)Input voltage (except XTAL, EXTAL, OSC1, OSC2, ports 4 and 9), Vin: –0.3 to PVCC +0.3 V; (5)Reference voltage, Vref: –0.3 to AVCC +0.3 V; (6)Analog power supply voltage, AVCC: –0.3 to +7.0 V; (7)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (8)Operating temperature Topr Regular specifications:–20 to +75℃; (9)Wide-range specifications: –40 to +85℃; (10)Storage temperature Tstg: –55 to +125℃.

Features

HD64F2633F25IV features: (1)Address space divided into 8 areas, with bus specifications settable independently for each area; (2)Choice of 8-bit or 16-bit access space for each area; (3)2-state or 3-state access space can be designated for each area; (4)Number of program wait states can be set for each area; (5)Burst ROM directly connectable; (6)Possible to connect a maximum of 8 MB of DRAM (alternatively, it is also possible to use an interval timer) External bus release function.
