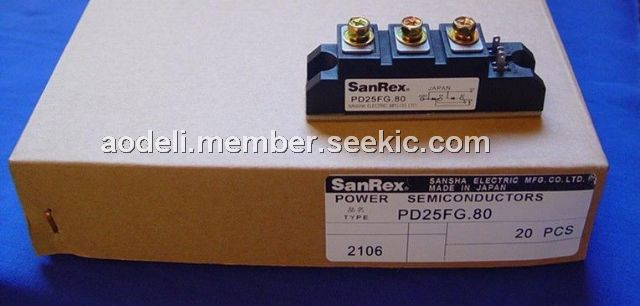

Product Summary

The PD25FG80 is a Power Thyristor/Diode Module. It is designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available and electrically isolated mounting base make your mechanical design easy. The applications of the PD25FG80 include: Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches.

Parametrics

PD25FG80 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 800 V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 960 V; (3)VDRM Repetitive Peak off-state Voltage: 800 V.

Features

PD25FG80 features: (1)IT(AV) 25A, IT(RMS) 39A, ITSM 700A; (2)di/dt 100A/μs; (3)dv/dt 1000V/μs.

Diagrams

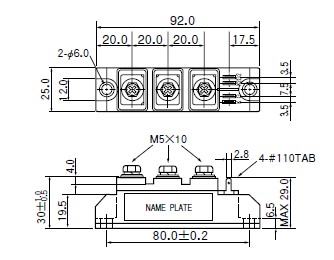

PD25FG80 dimensions
