Product Summary
The SAA7114H is a video capture device for applications at the image port of VGA controllers. The SAA7114H is a highly integrated circuit for desktop video and similar applications. The SAA7114H is based on the principle of line-locked clock decoding and is able to decode the colour of PAL, SECAM and NTSC signals into ITU 601 compatible colour component values.
Parametrics
SAA7114H absolute maximum ratings: (1)digital supply voltage:-0.5V to +4.6V; (2)analog supply voltage:-0.5V to +4.6V; (3)input voltage at analog inputs:-0.5V to +4.6V; (4)input voltage at pins XTALI, SDA and SCL:-0.5V to VDDD+0.5V; (5)voltage difference between VSSA(n) and VSSD(n):100mV; (6)storage temperature:-65℃ to +150℃; (7)ambient temperature:0℃ to 70℃.
Features
SAA7114H features: (1)Horizontal and vertical sync detection; (2)Automatic detection of 50 and 60 Hz field frequency,and automatic switching between PAL and NTSC standards; (3)Luminance and chrominance signal processing for PAL B, G, D, H, I and N, combination PAL N, PAL M, NTSC M, NTSC-Japan, NTSC 4.43 and SECAM; (4)PAL delay line for correcting PAL phase errors; (5)Independent Brightness Contrast Saturation (BCS) adjustment for decoder part; (6)User programmable sharpness control; (7)Independent gain and offset adjustment for raw data path.

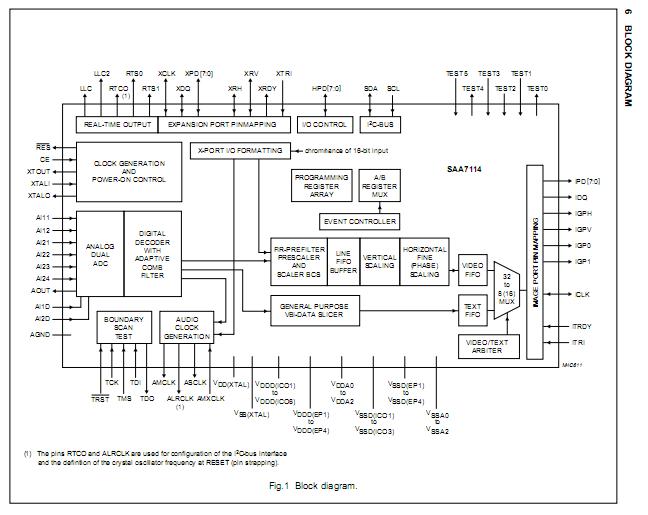

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAA7114H |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
SAA7114H/V2,518 |
NXP Semiconductors |
Video ICs DIGITAL VIDEO DECODER W/COMB F |
Data Sheet |
Negotiable |
|
||||
|
SAA7114H/V2,557 |
NXP Semiconductors |
Video ICs DECODR W/FILTR |
Data Sheet |
Negotiable |
|
||||
