Product Summary

The MINISMDC110F24-2 is a PolySwitch surface-mount device. It is a preferred circuit protection method for computer, consumer, multimedia, portable, and automotive electronics applications. The applications of the MINISMDC110F24-2 include Computer, Portable electronics, Multimedia, Game machines, Telephony and broadband, Mobile phones, Automotive, Industrial controls and Battery.

Parametrics

MINISMDC110F24-2 absolute maximum ratings: (1)Hold Current: 1.1 Amps; (2)Trip Current: 2.2 Amps; (3)Current Rating (Max): 20 Amps; (4)Resistance: 0.18 Ohms; (5)Maximum Voltage: 24 VoltsDC; (6)Package / Case: 1812 (4532 metric); (7)Termination Style: SMD/SMT; (8)Mounting Style: SMD/SMT; (9)Current Rating: 20 Amps; (10)Dimensions: 4.83 mm L × 3.41 mm W × 1.46 mm H; (11)Operating Temperature Range: - 40 to + 85℃.

Features

MINISMDC110F24-2 features: (1)RoHS compliant; (2)Halogen free; (3)Broadest range of resettable devices available in the industry; (4)Current ratings from 0.05 to 3A; (5)Voltage ratings from 6V computer and electronic applications to 60V telecom applications; (6)Agency recognition: UL, CSA, TüV; (7)Small footprint; (8)Fast time-to-trip; (9)Low resistance.

Diagrams

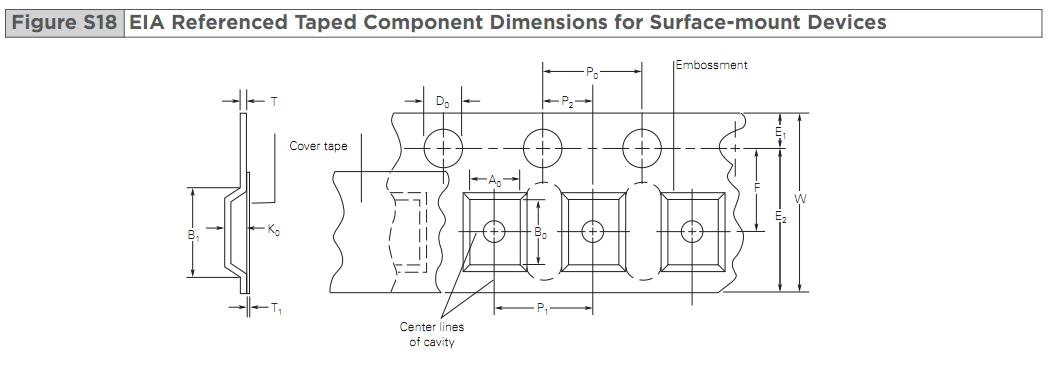

MINISMDC110F24-2 dimensions
