Product Summary

The X20C16ji-35 is a 2K x 8 high speed autostore NOVRAM featuring a highspeed static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E2PROM) and the AUTOSTORE feature which automatically saves the RAM contents to E2PROM at power-down. The X20C16ji-35 is fabricated with advanced CMOS floating gate technology to achieve high speed with low power and wide power-supply margin. The X20C16JI-55 features a compatible JEDEC approved pinout for byte-wide memories, for industry standard RAMs, ROMs, EPROMs, and E2PROMs.

Parametrics

X20C16ji-35 absolute maximum ratings: (1)Temperature under Bias: –65 to +135℃; (2)Storage Temperature: –65 to +150℃; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 10mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

X20C16ji-35 features: (1)Fast Access Time: 35ns, 45ns, 55ns; (2)High Reliability; (3)Automatically Stores RAM Data Into the E2PROM Array When VCC Low Threshold is Detected; (4)Power-on Recall; (5)Software Data Protection; (6)Low Power CMOS; (7)Infinite E2PROM Array Recall, and RAM Read and Write Cycles.

Diagrams

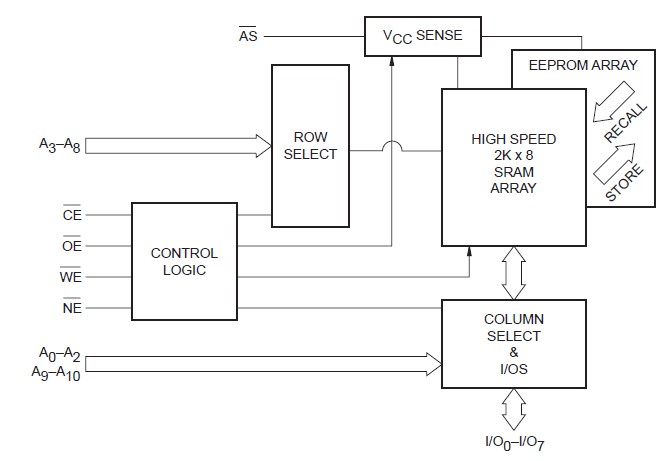

X20C16ji-35 diagram
