Product Summary

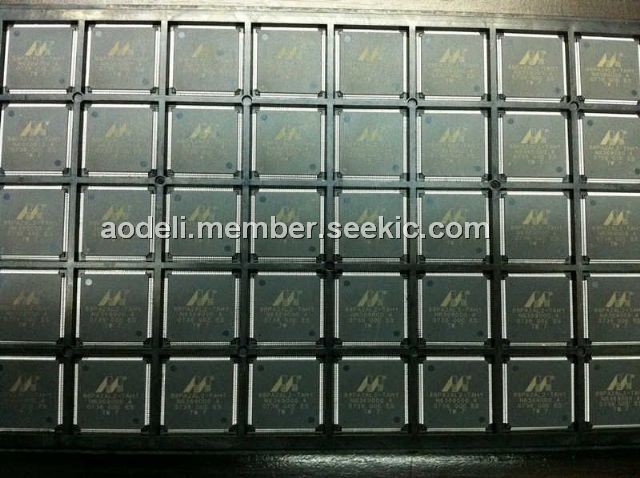

The 88E1119R-A0-NNW2C000 is the Gigabit Ethernet Transceiver which is a physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications. It is manufactured using standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on standard CAT 5 unshielded twisted pair. The 88E1119R-A0-NNW2C000 incorporates the Marvell Virtual Cable Tester (VCT) feature, which uses Time Domain Reflectometry (TDR) technology for the remote identification of potential cable malfunctions, thus reducing equipment returns and service calls.
Features
88E1119R-A0-NNW2C000 features: (1)10/100/1000BASE-T IEEE 802.3 compliant; (2)Supports GMII, TBI, reduced pin count GMII (RGMII), reduced pin count TBI (RTBI), and serial GMII (SGMII) interfaces; (3)Integrated 1.25 GHz SERDES for 1000BASE-X fiber applications; (4)Four RGMII timing modes; (5)Energy Detect and Energy Detect+ low power modes; (6)Three loopback modes for diagnostics; (7)Downshift mode for two-pair cable installations; (8)Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers; (9)Advanced digital baseline wander correction; (10)Automatic MDI/MDIX crossover at all speeds of operation; (11)Automatic polarity correction; (12)IEEE 802.3u compliant Auto-Negotiation; (13)Software programmable LED modes including LED testing; (14)Automatic detection of fiber or copper operation; (15)Supports IEEE 1149.1 JTAG.
Diagrams
 |
