Product Summary

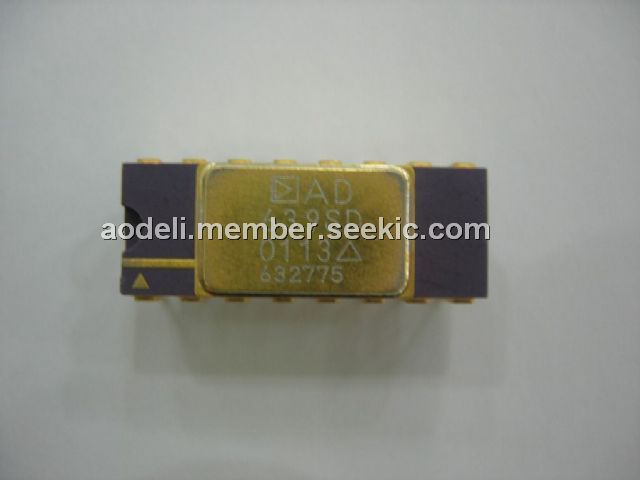

The AD639SD is a high accuaracy monolithic function converter which provides all the standard trigonometric functions and its inverses via pin-strapping. The applications of the AD639SD are continuous wave sine generators, synchro sine/cosine multiplication, coordinate conversion and vector resolution, imaging and scanning linearization circuits, quadrature and variable phase oscillators.

Parametrics

AD639SD absolute maximum ratings: (1)supply voltage:±18V; (2)internal power dissipation:300mW; (3)input voltage:±12V or ±25V; (4)operating temperature range:-25 to +85℃; (5)storage temperature range:-65 to +150℃; (6)lead temperature:+300℃.

Features

AD639SD features: (1)complete,fully-calibrated synthesis system; (2)accurate law conformance; (3)angular range of ±500°; (4)function programmable by pin strapping; (5)1.5MHz bandwidth; (6)multiplication via external amplitude input.

Diagrams

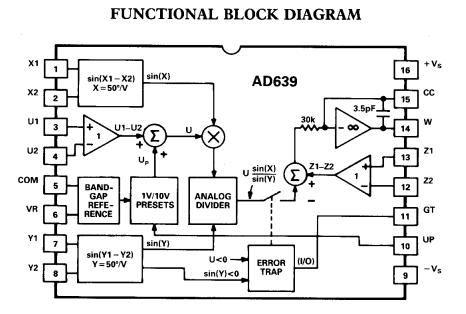

AD639SD block diagram
