Product Summary

The AO3401A is a 30V P-Channel MOSFET. It uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation gate voltages as low as 2.5V. The AO3401A is suitable for use as a load switch or other general applications.

Parametrics

AO3401A Absolute maximum ratings: 1)Drain-source voltage: ; (2)Gate-source voltage: ±12 V; (3)Continuous drain TA= 25℃ : -4 A; (4)Continuous drain TA= 70℃ : -3.2 A; (5)Pulsed Drain Current C: -27 A; (6)Power Dissipation B TA= 25℃ : 1.4 W; (7)Power Dissipation B TA= 75℃ : 0.9 W; (8)Junction and Storage Temperature Range: -55℃ to 150℃.

Features

AO3401A features: (1)VDS: -30V; (2)ID (at VGS=-10V): -4.0A; (3)RDS(ON) (at VGS=-10V): < 50mW; (4)RDS(ON) (at VGS =-4.5V): < 60mW; (5)RDS(ON) (at VGS=-2.5V): < 85mW.

Diagrams

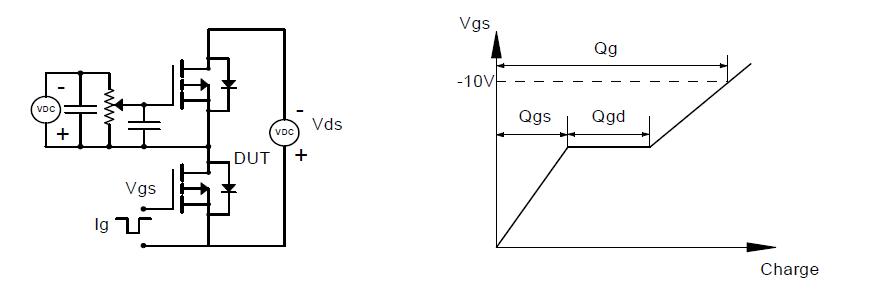

AO3401A waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO3401A
AO3401A

MOSFET P-CH -30V -4.3A SOT23
Data Sheet
0-1: $0.27
1-25: $0.18
25-100: $0.15
100-250: $0.12
250-500: $0.10
500-1000: $0.07
