Product Summary

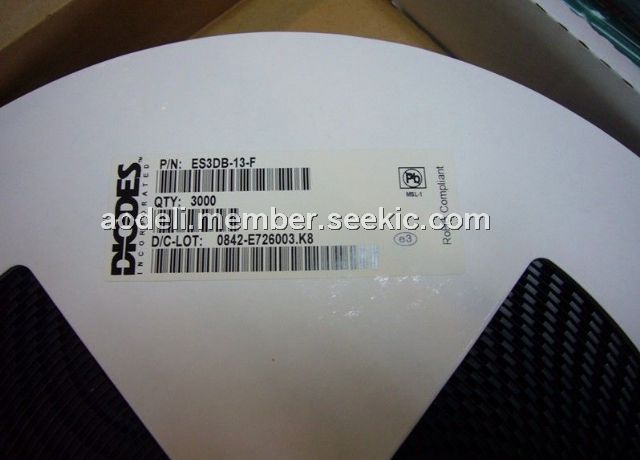

The ES3DB-13-F is a 3.0a surface mount super-fast rectifier.
Parametrics
ES3DB-13-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 200 V; (2)Working Peak Reverse Voltage: 200 V; (3)DC Blocking Voltage: 200 V; (4)RMS Reverse Voltage: 140 V; (5)Average Rectified Output Current @ TT = 100℃ : 3.0 A; (6)Forward Voltage @ IF = 3.0A: 0.9 V; (7)Peak Reverse Current @ TA = 25℃: 10 μA; (8)at Rated DC Blocking Voltage @ TA = 125℃ : 500 μA; (9)Reverse Recovery Time: 25 ns; (10)Typical Total Capacitance: 45 pF; (11)Operating and Storage Temperature Range: -65℃ to +150℃; (12)Typical Thermal Resistance, Junction to Terminal: 15℃/W.
Features
ES3DB-13-F features: (1)Glass Passivated Die Construction; (2)Super-Fast Recovery Time For High Efficiency; (3)Low Forward Voltage Drop and High Current Capability; (4)Surge Overload Rating to 100A Peak; (5)Ideally Suited for Automated Assembly; (6)Lead Free Finish/RoHS Compliant.

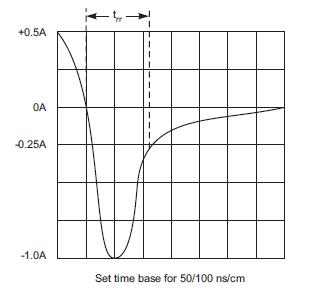

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ES3DB-13-F |
Diodes Inc. |
Rectifiers 200V 3A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ES3D |
Fairchild Semiconductor |
Rectifiers 3.0a Rectifier UF Recovery |
Data Sheet |
|
|
||||||||||||
 |
ES3D/1T |
Vishay Semiconductors |
Rectifiers 200 Volt 3.0A 20ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES3D/51T |
Vishay Semiconductors |
Rectifiers 200 Volt 3.0A 20ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES3D/57T |
Vishay Semiconductors |
Rectifiers 3.0 Amp 200V 20ns |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES3D/59T |
Vishay Semiconductors |
Rectifiers 200 Volt 3.0A 20ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES3D/7T |
Vishay Semiconductors |
Rectifiers 200 Volt 3.0A 20ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
