Product Summary
The HD64F2378/H8S/2378 is a 16-bit single-chip microcomputer.
Parametrics
HD64F2378/H8S/2378 absolute maximum ratings: (1)Power supply voltage VCC PLLVCC: -0.3 to +4.3 V; (2)Input voltage (except ports 4 and 9) Vin: -0.3 to VCC +0.3 V; (3)Input voltage (ports 4 and 9) Vin: -0.3 to AVCC +0.3 V; (4)Reference power supply voltage Vref: -0.3 to AVCC +0.3 V; (5)Analog power supply voltage AVCC: -0.3 to +4.0 V; (6)Analog input voltage VAN: -0.3 to AVCC +0.3 V; (7)Operating temperature Topr: Regular specifications: -20 to +75℃; Wide-range specifications: -40 to +85℃; (8)Storage temperature Tstg: -55 to +125℃
Features
HD64F2378/H8S/2378 features: (1)Various peripheral functions; (2)DMA controller (DMAC); (3)EXDMA controller (EXDMAC); (4)Data transfer controller (DTC); (5)16-bit timer-pulse unit (TPU); (6)Programmable pulse generator (PPG); (7)8-bit timer (TMR); (8)Watchdog timer (WDT); (9)Asynchronous or clocked synchronous serial communication interface (SCI); (10)I2C bus interface 2 (IIC2); (11)10-bit A/D converter; (12)8-bit D/A converter; (13)Clock pulse generator.

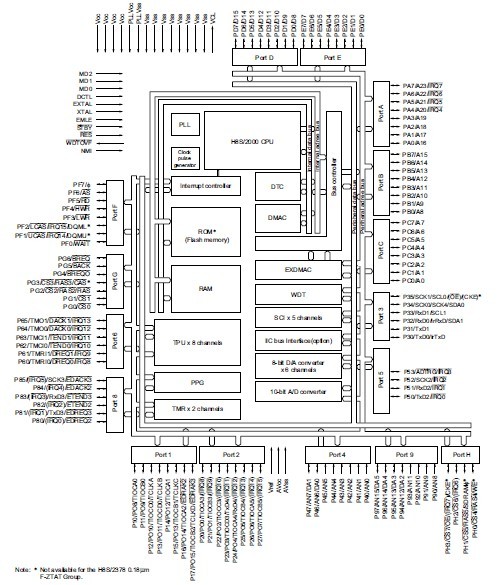

Diagrams
