Product Summary

The HD64F7145F50V is a single-chip RISC (Reduced Instruction Set Computer) microcomputer. It integrates a Renesas Technology original RISC CPU core with peripheral functions required for system configuration. The HD64F7145F50V CPU has a RISC-type instruction set.

Parametrics

HD64F7145F50V absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +4.3 V; (2)Input voltage, All pins other than analog, input pins, Vin: –0.3 to VCC +0.3 V; Analog input pins, Vin: –0.3 to AVCC +0.3 V; (3)Analog supply voltage, AVCC: –0.3 to +4.3 V; (4)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (5)Operating temperature, TWEopr: –20 to +75℃; (6)Storage temperature, Tstg: –55 to +125℃.

Features

HD64F7145F50V features: (1)Instruction length: 16-bit fixed length for improved code efficiency; (2)Load-store architecture (basic operations are executed between registers); (3)Sixteen 32-bit general registers; (4)Five-stage pipeline; (5)C language-oriented 62 basic instructions; (6)Direct memory access controller (DMAC); (7)Data transfer controller (DTC); (8)Multifunction timer/pulse unit (MTU); (9)Compare match timer (CMT); (10)Watchdog timer (WDT); (11)Asynchronous or clocked synchronous serial communication interface (SCI); (12)10-bit A/D converter; (13)Clock pulse generator; (14)User break controller (UBC); (15)User debugging interface (H-UDI); (16) Advanced user debugger (AUD).

Diagrams

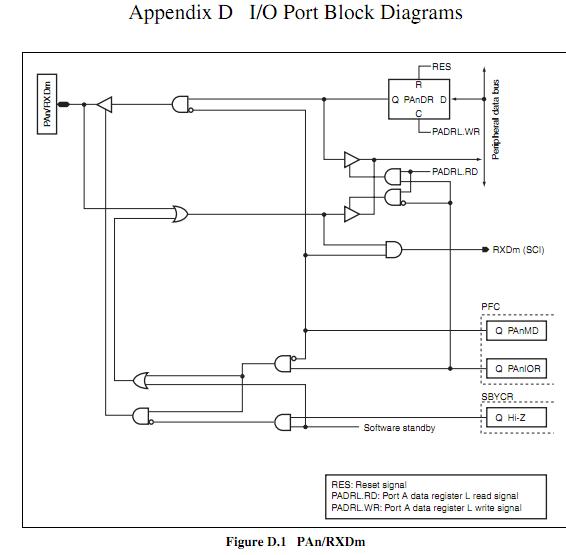

HD64F7145F50V block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HD64F7145F50V
HD64F7145F50V


IC SUPERH MCU FLASH 256K 144QFP

Data Sheet

0-1: $14.93
1-10: $13.81
10-100: $11.76
100-250: $10.82
250-500: $10.26
500-1000: $9.70
1000-2500: $9.40
2500-5000: $9.14
5000-10000: $8.96
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HD6412240TE13
HD6412240TE13


IC H8S MPU ROMLESS 100TQFP

Data Sheet

Negotiable
HD6412322RVF25
HD6412322RVF25


IC H8S MCU ROMLESS 128-QFP

Data Sheet

Negotiable
HD6412322RVFBL25
HD6412322RVFBL25


IC H8S MCU ROMLESS 128-QFP

Data Sheet

Negotiable
HD6412332VFCBL25
HD6412332VFCBL25

Renesas Technology America

IC H8S MCU ROMLESS 144-QFP

Data Sheet

Negotiable
HD6412350F20
HD6412350F20


IC H8S MPU ROMLESS 5V 128QFP

Data Sheet

Negotiable
HD6412350F20V
HD6412350F20V


IC H8S MPU ROMLESS 5V 128QFP

Data Sheet

Negotiable
