Product Summary

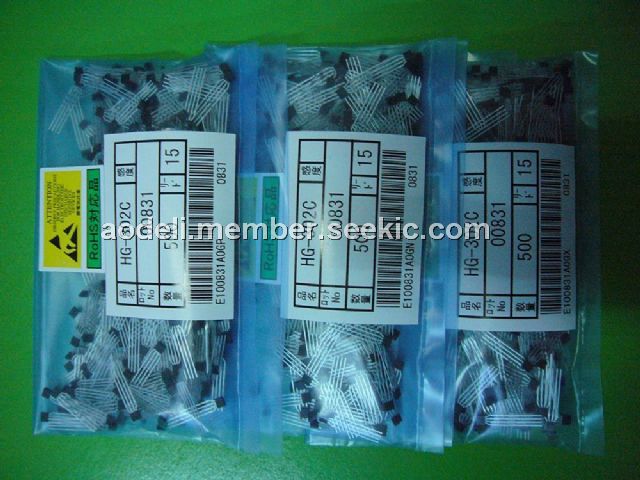

The HG-302C is a GaAs hall element.
Parametrics
HG-302C absolute maximum ratings: (1)Max. Input Voltage, VC: 10V; (2)Operating Temp. Range, Topr: -40 to 125℃; (3)Max.Input Power, PD: 150mW; (4)Storage Temp. Range, Tstg: -40 to 150℃.
Features
HG-302C features: (1)Input Resistance, Rin: 650 to 850Ω; (2)Output Resistance, Rout: 650 to 850Ω; (3)Offset Voltage, Vos(VU): -11 to 11mV; (4)Temp. Coefficient of VH, αVH: -0.06%/℃ max; (5)Temp. Coefficient of Rin, αRin: 0.3%/℃; (6)Linearity, △k: 2% max; (7)Output Hall Voltage, VH: 55 to 75mV.
Diagrams
HG-301A |
HEAT GUN MSTR 300-500F 1440W |
Data Sheet |
|
|
||||||||||||||||||||||
HG-3340S000 |

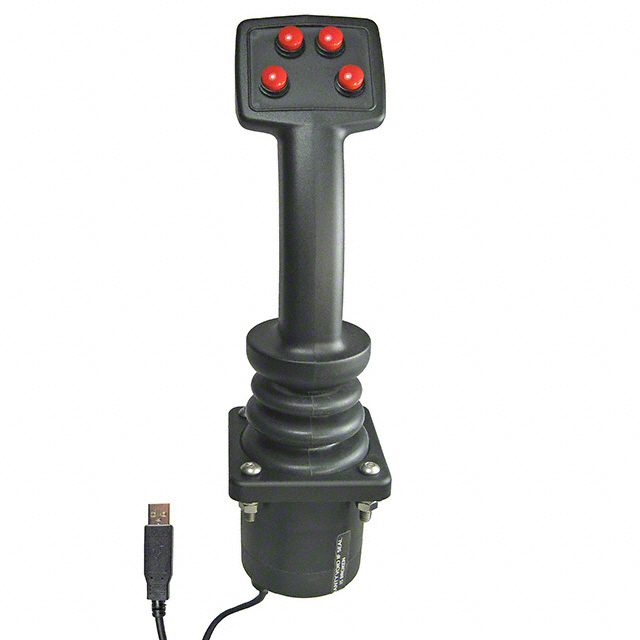

JOYSTICK SERIES IV 4BUTTONS |
