Product Summary

The MT48LC16M16A2P-75 is a 256Mb SDRAM. It is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits. The MT48LC16M16A2P-75 is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x16’s 67,108,864-bit banks is organized as 8,192 rows by 512 columns by 16 bits. The MT48LC16M16A2P-75 provides for programmable READ or WRITE burst lengths of 1, 2, 4, or 8 locations, or the full page, with a burst terminate option. The MT48LC16M16A2P-75 is designed to operate in 3.3V memory systems. An auto refresh mode is provided, along with a power-saving, power-down mode. All inputs and outputs are LVTTL-compatible.

Parametrics

MT48LC16M16A2P-75 absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS:-1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS:-1V to +4.6V; (3)Operating Temperature(commercial):0℃ to +70℃; (4)Operating Temperature(industrial “IT”):-40℃ to +85℃; (5)Storage Temperature (plastic):-55℃ to +150℃; (6)Power Dissipation:1W.

Features

MT48LC16M16A2P-75 features: (1)PC66-, PC100-, and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes; (7)Self Refresh Mode; (8)64ms, 8,192-cycle refresh; (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply.

Diagrams

MT48LC16M16A2P-75 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MT48LC16M16A2P-75
MT48LC16M16A2P-75
Other

Data Sheet
Negotiable
MT48LC16M16A2P-75 IT:D
MT48LC16M16A2P-75 IT:D

IC SDRAM 256MBIT 133MHZ 54TSOPII
Data Sheet
0-1000: $3.06
MT48LC16M16A2P-75 L:D TR
MT48LC16M16A2P-75 L:D TR

IC SDRAM 256MBIT 133MHZ 54TSOP
Data Sheet
0-1: $4.88
1-10: $4.49
10-25: $4.40
25-50: $4.38
50-100: $3.93
100-250: $3.81
250-500: $3.63
MT48LC16M16A2P-75 L:D
MT48LC16M16A2P-75 L:D

IC SDRAM 256MBIT 133MHZ 54TSOP
Data Sheet
0-1000: $3.18
MT48LC16M16A2P-75:D
MT48LC16M16A2P-75:D

IC SDRAM 256MBIT 133MHZ 54TSOPII
Data Sheet
0-1000: $2.43
MT48LC16M16A2P-75 IT:D TR
MT48LC16M16A2P-75 IT:D TR

IC SDRAM 256MBIT 133MHZ 54TSOP
Data Sheet
0-1: $4.69
1-10: $4.32
10-25: $4.23
25-50: $4.21
50-100: $3.78
100-250: $3.66
250-500: $3.48
MT48LC16M16A2P-75:D TR
MT48LC16M16A2P-75:D TR

IC SDRAM 256MBIT 133MHZ 54TSOP
Data Sheet
0-1: $3.76
1-10: $3.43
10-25: $3.36
25-50: $3.34
50-100: $2.99
100-250: $2.98
250-500: $2.80

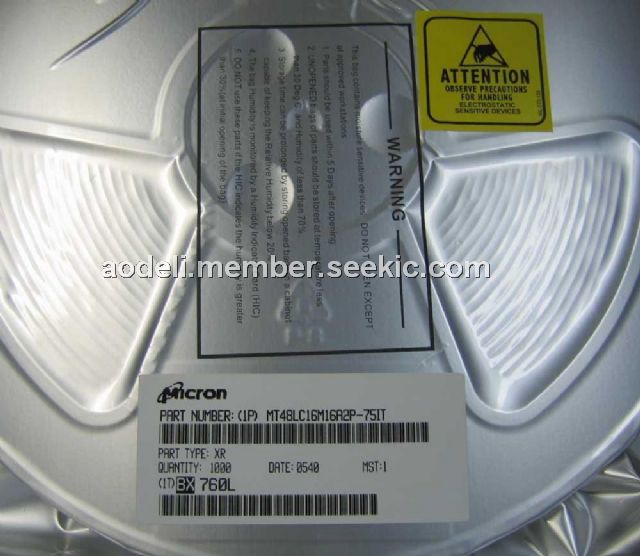

MT48LC16M16A2P-75IT
MT48LC16M16A2P-75IT
Other

Data Sheet
Negotiable
