Product Summary

The SMAJ9.0A-13-F is a 400W surface mount transient voltage suppressor.

Parametrics

SMAJ9.0A-13-F absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃ ) PPK: 400 W; (2)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) IFSM: 40 A; (3)Steady State Power Dissipation @ TL = 75℃ PM(AV): 1.0 W; (4)Instantaneous Forward Voltage @ IPP = 35A VF: 3.5 V; (5)Operating Temperature Range Tj: -55℃ to +150℃; (6)Storage Temperature Range TSTG: -55℃ to +175℃.

Features

SMAJ9.0A-13-F features: (1)400W Peak Pulse Power Dissipation; (2)Glass Passivated Die Construction; (3)Uni- and Bi-Directional Versions Available; (4)Excellent Clamping Capability; (5)Fast Response Time; (6)Lead Free Finish/RoHS Compliant.

Diagrams

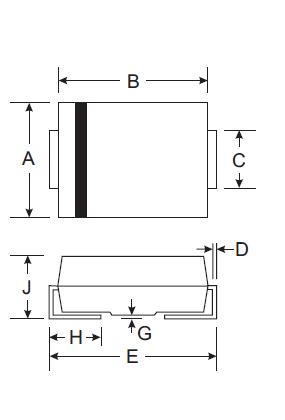

SMAJ9.0A-13-F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SMAJ9.0A-13-F
SMAJ9.0A-13-F

Diodes Inc.

TVS Diodes - Transient Voltage Suppressors 400W 9.0V

Data Sheet

0-1: $0.30
1-10: $0.23
10-100: $0.16
100-250: $0.13
