Product Summary

The ZNBG2000X10TC is designed to meet the bias requirement of GaAs and HEMT FET commonly used in satellite receiver LNBs, PMR, cellular telephones etc. with a minimum of external components. With the addition of two capacitors and a resistor the ZNBG2000X10TC provides drain voltage and current control for 2 external grounded source FETs, generating the regulated negative rail required for FET gate biasing whilst operating from a single supply. This negative bias of the ZNBG2000X10TC, at -3 volts, can also be used to supply other external circuits.

Parametrics

ZNBG2000X10TC absolute maximum ratings: (1)Supply Voltage: -0.6V to 15V; (2)Supply Current: 100mA; (3)Drain Current (per FET): 0 to 15mA; (4)Output Current: 100mA; (5)Operating Temperature: -40 to 80℃; (6)Storage Temperature: -40 to 85℃.

Features

ZNBG2000X10TC features: (1)Provides bias for GaAs and HEMT FETs; (2)Drives up to two FETs; (3)Dynamic FET protection; (4)Drain current set by external resistor; (5)Regulated negative rail generator requires only 2 external capacitors; (6)Choice in drain voltage; (7)Wide supply voltage range; (8)MSOP surface mount package.

Diagrams

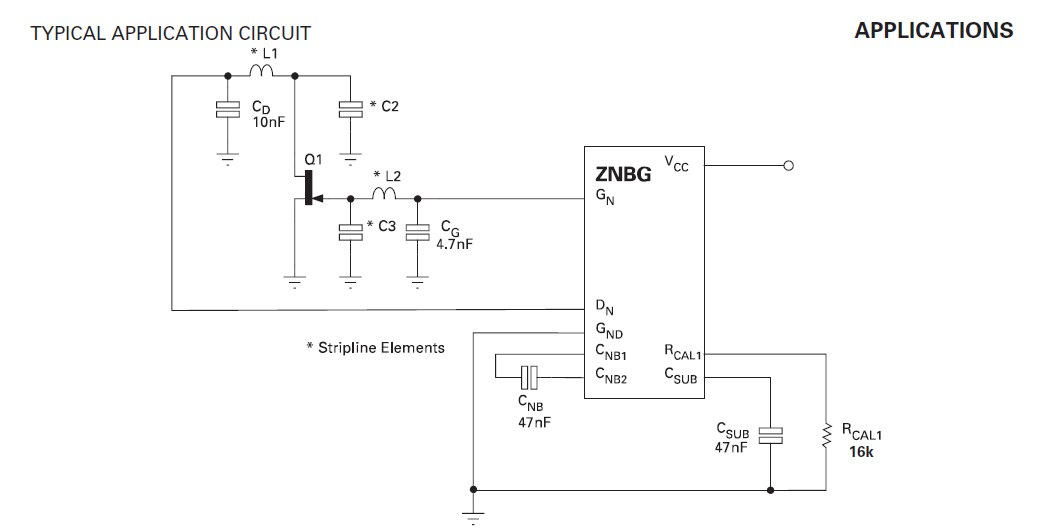

ZNBG2000X10TC typical application circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ZNBG2000X10TC
ZNBG2000X10TC

Diodes Inc.

Linear Regulators - Standard 2 FET BIAS VD=2.2V Generator

Data Sheet

0-3015: $1.39
3015-4000: $1.39
4000-5000: $1.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ZNBG2000
ZNBG2000

Other


Data Sheet

Negotiable
ZNBG2000X10TA
ZNBG2000X10TA


IC CTRLR BIAS FET 2STAGE 10-MSOP

Data Sheet

0-1000: $1.26
ZNBG2000X10TC
ZNBG2000X10TC

Diodes Inc.

Linear Regulators - Standard 2 FET BIAS VD=2.2V Generator

Data Sheet

0-3015: $1.39
3015-4000: $1.39
4000-5000: $1.34
ZNBG2001
ZNBG2001

Other


Data Sheet

Negotiable
ZNBG3000
ZNBG3000

Other


Data Sheet

Negotiable
ZNBG3000Q16TC
ZNBG3000Q16TC

Diodes Inc.

MOSFET 3BIAS GENERATOR 2.2V

Data Sheet

0-1795: $1.46
1795-2000: $1.39
2000-5000: $1.33
