Product Summary

The 1.5SMC36CAT3G is a Surface Mount Bi-Directional Glass Passivated Junction Transient Voltage Suppressor. It is designed to protect voltage sensitive components from high voltage transients. The 1.5SMC36CAT3G is manufactured with a glass passivated chip for optimum reliability.

Parametrics

1.5SMC36CAT3G absolute maximum ratings: (1)Peak Power Dissipation PPM: 1500 W; (2)Peak Forward Surge Current (JEDEC Method) IFSM: 200 A; (3)Operating and Storage Junction Temperature TJ,Tstg: -65 to +150 ℃.

Features

1.5SMC36CAT3G specifications: (1)VBR: 34.2 to 37.8 V; (2)Working peak reverse voltage: 18.8V; (3)Maximum reverse leakage @ @VRWM: 5μA; (4)Maximum reverse surge current: 30A; (5)Maximum reverse voltage @ IRSM: 49.9V; (6)Maximum temp. coefficient 0.099 %/℃.

Diagrams

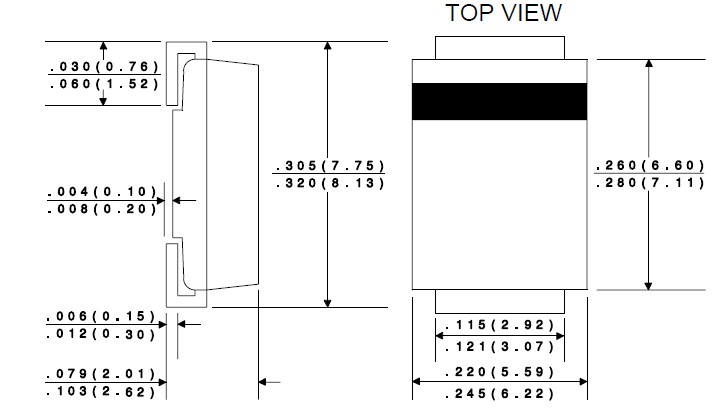

1.5SMC36CAT3G dimensions
