Product Summary
The ATMEGA8515-16PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8515-8AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATMEGA8515-8AU is manufactured using Atmel’s high density nonvolatile memory technology. The On-chip ISP Flash allows the Program memory to be reprogrammed In-System through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an On-chip Boot program running on the AVR core.
Parametrics
ATMEGA8515-16PU absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (5)Maximum Operating Voltage:6.0V; (6)DC Current per I/O Pin:40.0 mA; (7)DC Current VCC and GND Pins:200.0 mA.
Features
ATMEGA8515-16PU features: (1)130 Powerful Instructions-Most Single Clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 16 MIPS Throughput at 16 MHz; (5)On-chip 2-cycle Multiplier; (6)512 Bytes Internal SRAM; (7)Up to 64K Bytes Optional External Memory Space; (8)Programming Lock for Software Security; (9)One 8-bit Timer/Counter with Separate Prescaler and Compare Mode; (10)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (11)Three PWM Channels; (12)Programmable Serial USART; (13)Master/Slave SPI Serial Interface; (14)Programmable Watchdog Timer with Separate On-chip Oscillator; (15)On-chip Analog Comparator; (16)Power-on Reset and Programmable Brown-out Detection; (17)Internal Calibrated RC Oscillator; (18)External and Internal Interrupt Sources; (19)Three Sleep Modes: Idle, Power-down and Standby.

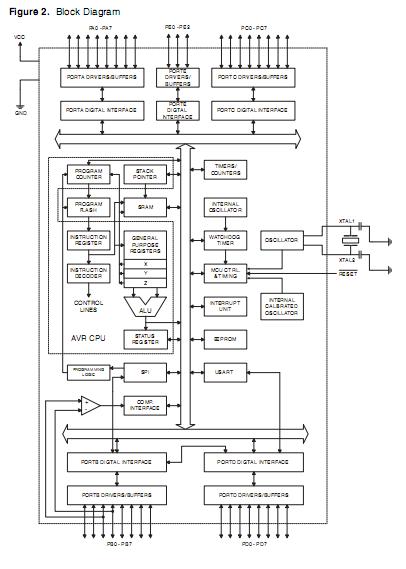

Diagrams
