Product Summary

The CLL5250B is a Silicon Zener Diode. It is a high quality voltage regulator designed for use in industrial, commercial, entertainment, and computer applications.

Parametrics

CLL5250B absolute maximum ratings: (1)Power Dissipation (TA=50℃) PD: 500 mW; (2)Operating and Storage Temperature TJ, Tstg: -65 to +200℃; (3)VZ Tolerance: ±5 %.

Features

CLL5250B features: (1)voltage VZ@IZT: 19 to 21V; 20V nom; (2)curretn, IZT: 6.2mA; (3)maximum zener impedance, ZZT@IZT: 25Ω; ZZK@IZK: 0.25mA.

Diagrams

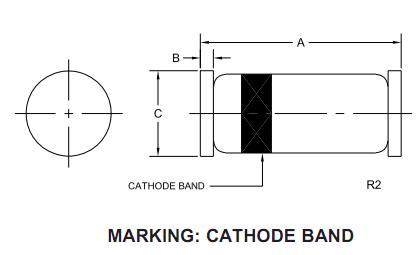

CLL5250B dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CLL5250B TR
CLL5250B TR

Central Semiconductor

Zener Diodes 20V 500mW

Data Sheet

0-1: $0.07
1-100: $0.06
100-500: $0.05
500-1000: $0.05
