Product Summary

The RT9161A-33PG is a 300/500mA fixed output voltage low dropout linear regulator. Typical ground current is approximately 110μA, from zero to maximum loading conditions. Wide range of available output voltage fits most of applications. Built-in output current-limiting most thermal-limiting provide maximal protection against any fault conditions. For ease of application, the RT9161A-33PG comes in the popular 3-pin SOT-23 (300mA), SOT-89 (300mA), SOT-223 (500mA), or TO-92 packages. The applications of the RT9161A-33PG include Voltage Regulator for LAN Card, CD-ROM, and DVD, Wireless Communication Systems and Battery Powered Systems.

Parametrics

RT9161A-33PG absolute maximum ratings: (1)put Voltage: -0.3 to 14V; (2)Operating Junction Temperature Range: -40 to 125℃; (3)Storage Temperature Range: -65 to 150℃; (4)Power Dissipation, PD: 0.4W; (5)Package Thermal Resistance, θJA: 250℃/W.

Features

RT9161A-33PG features: (1)Low Dropout Voltage of 200mV at Output Current; (2)100mA, 450mV at Output Current 300mA, and 750mV at 500mA Output Current; (3)Guaranteed 300/500mA Output Current; (4)Internal 1.5Ω P-MOSFET Draws No Base Current; (5)Low Ground Current 110 μA; (6)2% Accuracy Output Voltage; (7)Input Voltage Range up to 12V; (8)Extremely Tight Load Regulation; (9)Fast Transient Response; (10)Current-limiting and Thermal-limiting; (11)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

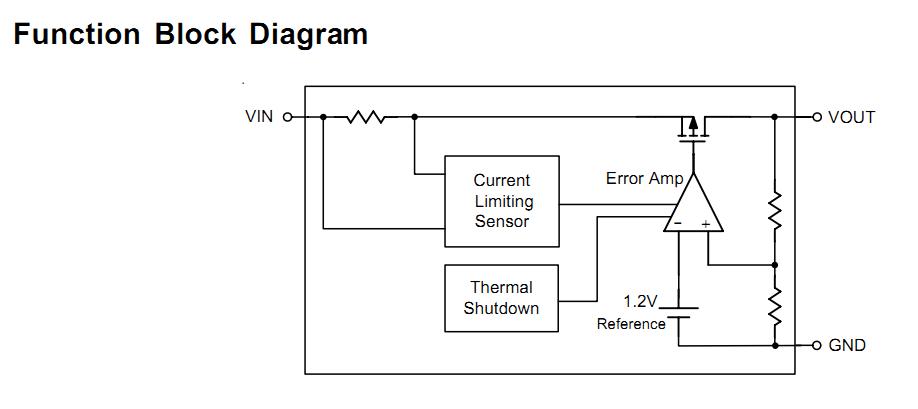

RT9161A-33PG functional block diagram
