Product Summary

The S10B-PH-SM4-TB is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. The S10B-PH-SM4-TB is compact, highly reliable and low in cost.

Parametrics

S10B-PH-SM4-TB absolute maximum ratings: (1)Current rating: 2A AC, DC (AWG #24); (2)Voltage rating: 100V AC, DC; (3)Temperature range: -25 to +85℃; (4)Contact resistance: Initial value/10mΩ max. After environmental testing/20mΩ max; (5)Insulation resistance: 1,000MΩ min; (6)Withstanding voltage: 800V AC/minute; (7)Applicable wire: AWG #32 to #24; (8)Applicable PC board thickness: 0.8 to 1.6mm.

Features

S10B-PH-SM4-TB features: (1)Reliable contact; (2)Fully shrouded header; (3)Printed circuit board retention mechanism; (4)Surface mount model (SMT).

Diagrams

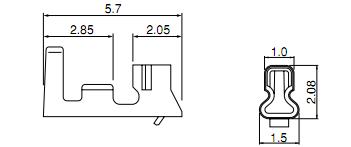

S10B-PH-SM4-TB dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

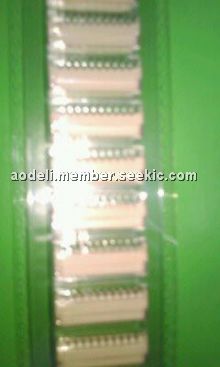

S10B-PH-SM4-TB(LF)(SN)
S10B-PH-SM4-TB(LF)(SN)

JST Sales America Inc (VA)

CONN HEADR PH SIDE 10POS 2MM SMD

Data Sheet

1-10: $0.63
10-100: $0.52
100-500: $0.42
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S10B-EH
S10B-EH

JST Sales America Inc

CONN HEADER EH SIDE 10POS 2.5MM

Data Sheet

Negotiable
S10B-EH(LF)(SN)
S10B-EH(LF)(SN)

JST Sales America Inc

CONN HEADER EH SIDE 10POS 2.5MM

Data Sheet

1-10: $0.22
10-100: $0.18
100-500: $0.15
500-1000: $0.12
1000-5000: $0.11
5000-10000: $0.10
S10B-PADSS-1(LF)(SN)
S10B-PADSS-1(LF)(SN)

JST Sales America Inc

CONN HEADER 10POS 2MM TIN

Data Sheet

1-10: $0.28
10-100: $0.23
100-500: $0.19
500-1000: $0.16
1000-5000: $0.14
5000-10000: $0.12
S10B-PASK-2
S10B-PASK-2

JST Sales America Inc

CONN HEADR PA 10POS SIDE 2MM TIN

Data Sheet

Negotiable
S10B-PHDSS
S10B-PHDSS

JST Sales America Inc

CONN HEADER PHD SIDE 10POS 2MM

Data Sheet

Negotiable
S10B-PHDSS(LF)(SN)(P)
S10B-PHDSS(LF)(SN)(P)

JST Sales America Inc

CONN HEADER PHD SIDE 10POS 2MM

Data Sheet

1-10: $0.22
10-100: $0.18
100-500: $0.15
500-1000: $0.12
1000-5000: $0.11
5000-10000: $0.10
