SMBJ24CA-E3

TRANSZORB Transient Voltage Suppressor, 600W, 24V, 100 A, DO-214

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.30

PartNumber:: SMBJ24CA-E3

Brand:: Vishay Siliconix - vishay | Pack: DO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tesi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-25

From Other Seller

Part Number:SMBJ24CA-E3
US $0.01 - 0.30
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SMBJ24CA-E3 is a Surface Mount TRANSZORB Transient Voltage Suppressor. The applications of the SMBJ24CA-E3 include sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

Parametrics

SMBJ24CA-E3 absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 600 W; (2)Peak forward surge current 8.3 ms single half sine-wave uni-directional only, IFSM: 100 A; (3)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 150℃.

Features

SMBJ24CA-E3 features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)600 W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %; (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)AEC-Q101 qualified.

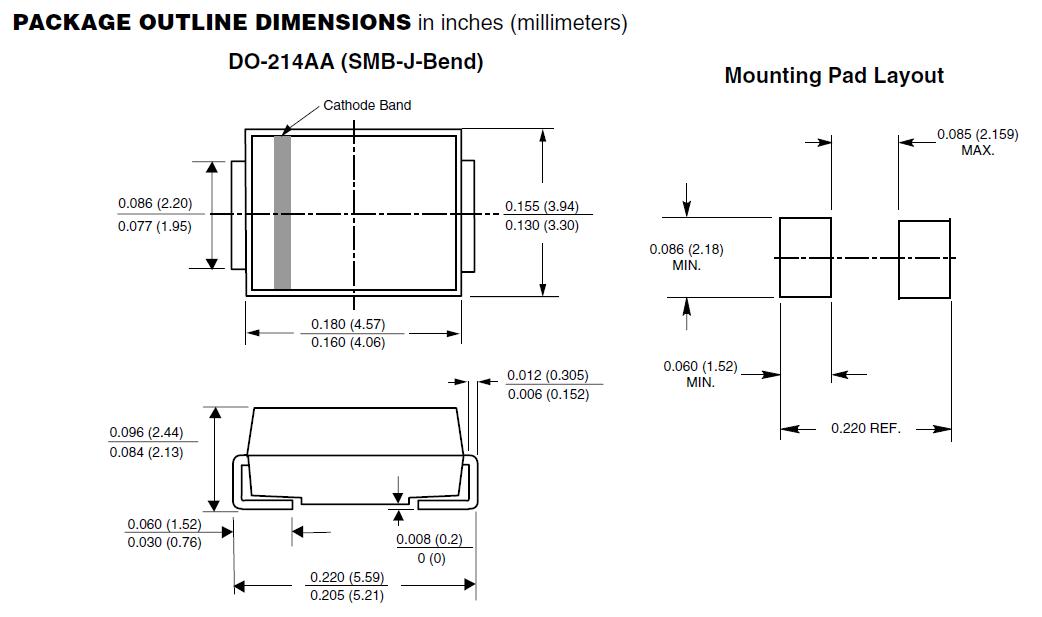

Diagrams
