Product Summary
The TC7SH86FU is an advanced high speed CMOS exclusive OR gate fabricated with silicon gate CMOS technology. The TC7SH86FU achieves the high speed operation similar to equivalent bipolar schottky TTL while maintaining teh CMOS low power dissipation. The internal circuit is includes on output buffer, which provide high noise immunity and stable output. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply votlage. The TC7SH86FU can be used to interface 5V to 3V system and two supply system such as battery back up. This circuit prevents the TC7SH86FU destruction due to mismatched supply and input voltages.
Parametrics
TC7SH86FU absolute maximum ratings: (1)supply votlage range, VCC: -0.5 to 7.0V; (2)DC input voltage, VIN: -0.5 to 7.0V; (3)DC output voltage, VOUT: -0.5 to VCC+0.5V; (4)input diode current, IIK: -20mA; (5)output diode current, IOK: ±20mA; (6)DC output current, IOUT: ±25mA; (7)DC VCC/ground current, ICC: ±50mA; (8)power dissipation, PD: 200mW; (9)storage temperature, Tstg: -65 to 150℃; (10)lead temeprature, TL: 260℃.
Features
TC7SH86FU features: (1)high speed: tpd=4.8ns typ at VCC=5V; (2)low power dissipation: ICC=2μA max at Ta=25℃; (3)high noise immunity: VNIH=VNIL=28% VCC min; (4)power down protection is provided on all inputs; (5)balanced propagation delays: tPLH=tPHL; (6)wide operation voltage range :VCC(opr)=2V to 5.5V.

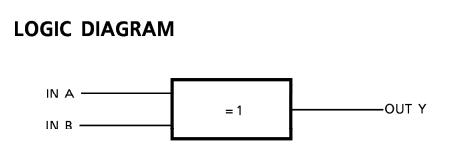

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC7SH86FU(T5L,JF,T |
Toshiba |
Gates (AND / NAND / OR / NOR) 2-Input 5.5V Exc OR 4.8ns 5V 15pF 2uA |
Data Sheet |
|
|
||||||||||||
|
TC7SH86FU(T5L,T) |
|
IC GATE EXCLUSIVE OR 5-SSOP |
Data Sheet |
Negotiable |
|
||||||||||||
