TMS320F2812PGFA

DIGITAL SIGNAL PROCESSOR, BGA, 150 MHz, 1.5M Total Memory, Three External Interrupts, 12-Bit ADC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.10~15.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.10~15.60

PartNumber:: TMS320F2812PGFA

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tesi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-15

From Other Seller

Part Number:TMS320F2812PGFA
US $13.10 - 15.60
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

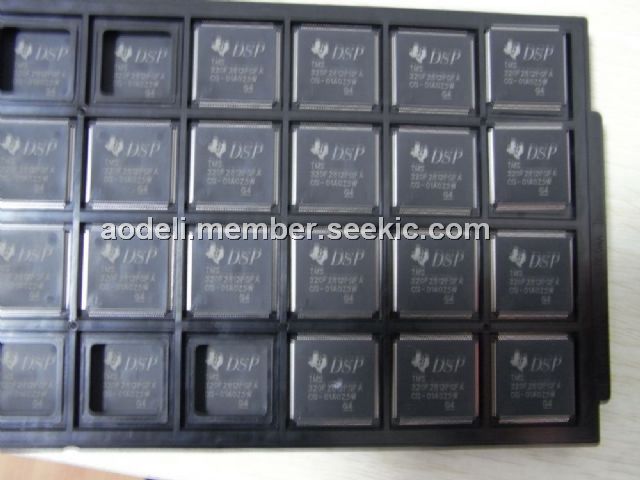

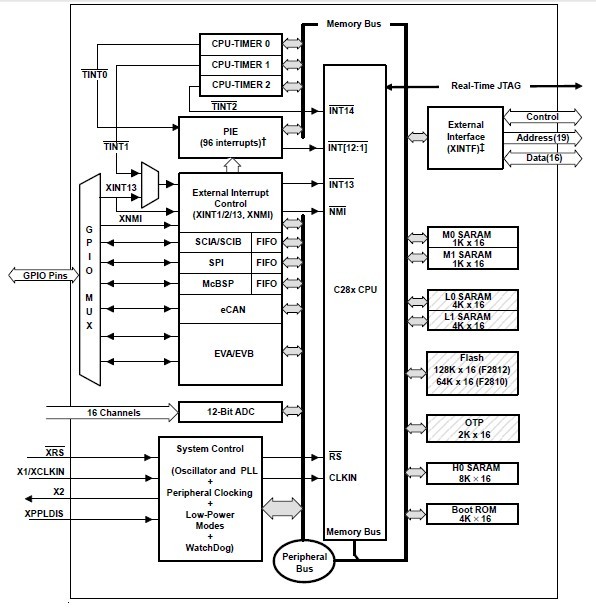

The TMS320F2812PGFA, member of the TMS320C28x. DSP generation, is a highly integrated, high-performance solution for demanding control applications. The functional blocks and the memory maps are described in subsequent paragraphs.

Parametrics

TMS320F2812PGFA absolute maximum ratings: (1)Supply voltage range, VDD, PLLVCCA, VDDO, and VCCA: - 0.3 V to 4.6 V; (2)Supply voltage range, CVDD: - 0.5 V to 2 V; (3)VCCP range: - 0.3 V to 3.6 V; (4)Input voltage range, VIN: - 0.3 V to 4.6 V; (5)Output voltage range, VO: - 0.3 V to 4.6 V; (6)Output voltage range,VO: - 0.3 V to 4.6 V; (7)Input clamp current, IIK (VIN < 0 or VIN > VCC): ± 20 mA; (8)Output clamp current, IOK (VO < 0 or VO > VCC): ± 20 mA; (9)Operating free-air temperature ranges, TA: A version: - 40℃ to 85℃; S version: - 40℃ to 125℃; (10)Junction temperature range, TJ: - 40℃ to 150℃; (11)Storage temperature range, Tstg: - 65℃ to 150℃.

Features

TMS320F2812PGFA features: (1)150 MHz (6.67-ns Cycle Time); (2)Low-Power (1.8-V Core, 3.3-V I/O) Design; (3)3.3-V Flash Programming Voltage; (4)16 x 16 and 32 x 32 MAC Operations; (5)16 x 16 Dual MAC; (6)Harvard Bus Architecture; (7)Atomic Operations; (8)Fast Interrupt Response and Processing; (9)Unified Memory Programming Model; (10)4M Linear Program Address Reach; (11)4G Linear Data Address Reach; (12)Code-Efficient (in C/C++ and Assembly); (13)TMS320F24x/LF240x Processor Source Code Compatible; (14)Up to 128K x 16 Flash (8 x 4K and 6 x 16K Sectors); (15)2K x 16 OTP ROM; (16)L0 and L1: 2 Blocks of 4K x 16 Single-Access RAM (SARAM); (17)H0: 1 Block of 8K x 16 SARAM; (18)M0 and M1: 2 Blocks of 1K x 16 SARAM; (19)Three External Interrupts; (20)Three 32-Bit CPU-Timers; (21)12-Bit ADC, 16 Channels; (22)Temperature Options: A: -40℃ to 85℃; S: -40℃ to 125℃.
