Product Summary

The TPSD336K025R0100 is a low ESR.

Parametrics

TPSD336K025R0100 Absolute maximum ratings: (1)Capacitance: 33 μF; (2)Rated voltage: 25 V; (3)DCL Max.: 8.3 μA; (4)ESR MAX. @ 100kHz: 100 mΩ; (5)100kHz RMS Current @ 25℃: 1.225 A; (6)100kHz RMS voltage @ 25℃: 0.122 V.

Features

TPSD336K025R0100 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

Diagrams

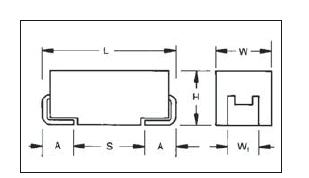

TPSD336K025R0100 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPSD336K025R0100
TPSD336K025R0100
AVX
Tantalum Capacitors - Solid SMD 33UF 25V 10% D
Data Sheet
0-1: $1.93
1-100: $1.60
100-500: $1.34
500-1000: $0.75
