Product Summary

The MRS1504T3G is a Surface Mount Standard Recovery Power Rectifier. It is ideally suited for high frequency switching power supplies; free wheeling diodes and polarity protection diodes.

Parametrics

MRS1504T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRWM: 400 V; (2)Average Rectified Forward Current(At Rated VR, TI = 118℃) IO: 1.5 A; (3)Peak Repetitive Forward Current(Rated VR, Square Wave, 20 kHz, TI = 118℃) IFRM: 3.0 A; (4)Non.Repetitive Peak Surge Current(Surge applied at rated load conditions, halfwave, single phase, 60 Hz) IFSM: 50 A; (5)Storage/Operating Case Temperature Range Tstg, TC: -55 to 150 ℃; (6)Operating Temperature Range TJ: -55 to 150 ℃.

Features

MRS1504T3G features: (1)Compact Package with J-Bend Leads Ideal for Automated Handling; (2)Stable, High Temperature, Glass Passivated Junction; (3)Pb-Free Package is Available.

Diagrams

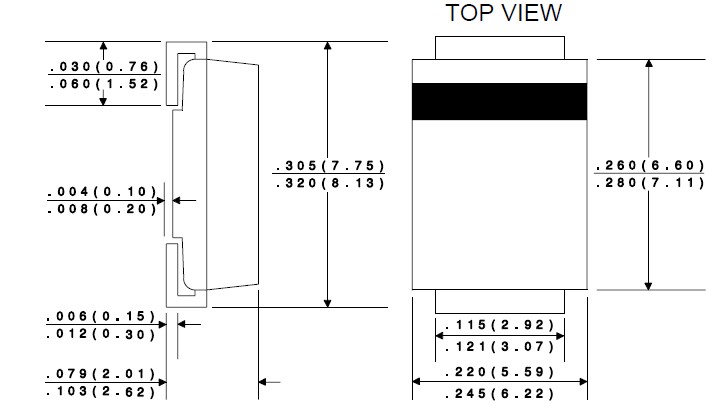

MRS1504T3G dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRS1504T3G
MRS1504T3G
ON Semiconductor
Rectifiers REC SMB 1.5A 400V STD TR
Data Sheet
0-1: $0.28
1-25: $0.16
25-100: $0.13
100-500: $0.08
