RT9818C

micro-power voltage detector, SOT, -0.3V to 6.0V, 20mA, High Accuracy, Low Supply Current, Quick Reset

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.08

PartNumber:: RT9818C

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tesi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-07

From Other Seller

Part Number:RT9818C
US $0.05 - 0.08
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

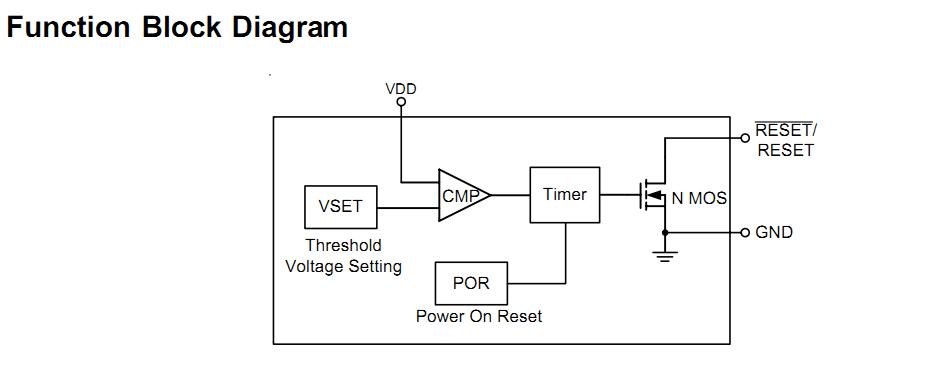

The RT9818C is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. The RT9818C provides internally fixed threshold levels with 0.1V per step ranging from 1.2V to 5V, which covers most digital applications. The RT9818C features low supply current of 3μA. The RT9818C performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered upcrossing the threshold level, the reset signal will be released after a certain delay time. The RT9818C is provided in SC-82, SC-70-3, SOT-23-3, SOT-23-5 and SOT-89 packages.

Parametrics

RT9818C absolute maximum ratings: (1)Terminal Voltage (with Respect to GND), VDD: -0.3V to 6.0V; (2)All Other Inputs: -0.3V to VDD+0.; (3)Input Current, IVDD: 20mA; (4)Power Dissipation, PD: 0.25W; (5)Package Thermal Resistance, θJA: 400℃/W; (6)Lead Temperature (Soldering, 10sec.): 260℃; (7)Storage Temperature Range: -65 to 125℃; (8)z ESD Susceptibility, HBM (Human Body Mode): 2kV; MM (Machine Mode): 200V.

Features

RT9818C features: (1)Internally Fixed Threshold 1.2V to 5V in 0.1V Step; (2)High Accuracy ±1.5%; (3)Low Supply Current 3μA; (4)No External Components Required; (5)Quick Reset within 20μs; (6)Built-in Recovery Delay Include 0ms, 55ms, 220ms,450ms Options; (7)Low Functional Supply Voltage 0.9V; (8)N-Channel Open-Drain Output; (9)Small SC-82, SC-70-3, SOT-23-3, SOT-23-5, SOT-89 Packages; (10)RoHS Compliant and 100% Lead (Pb)-Free.
