Product Summary

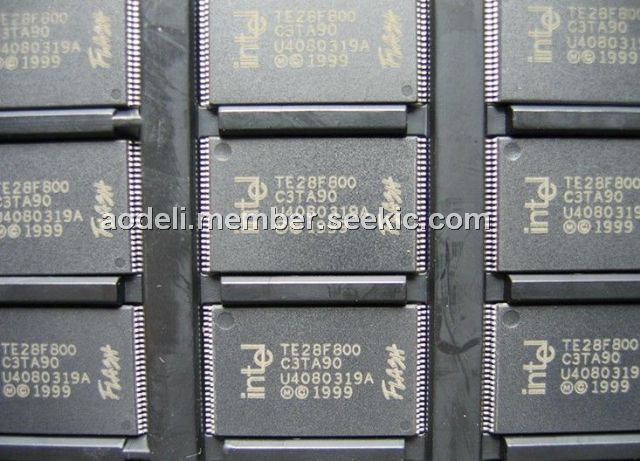

The TE28F800C3TA-90 is an Advanced+ Book Block Flash Memory device. It is manufactured on Intel’s latest 0.13 μm and 0.18 μm technologies, represents a feature-rich solution for low-power applications. The TE28F800C3TA-90 incorporates low-voltage capability (3 V read, program, and erase) with highspeed, low-power operation. Flexible block locking allows any block to be independently locked or unlocked. Add to this the Intel Flash Data Integrator (FDI) software and you have a costeffective, flexible, monolithic code plus data storage solution.
Parametrics
TE28F800C3TA-90 absolute maximum ratings: (1)Extended Operating Temperature During Read: –40 ℃ to +85 ℃; During Block Erase and Program: –40 ℃ to +85 ℃; Temperature under Bias: –40 ℃ to +85 ℃; (2)Storage Temperature: –65 ℃ to +125 ℃; (3)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V; (4)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V; (5)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (6)Output Short Circuit Current: 100 mA.
Features
TE28F800C3TA-90 features: (1)Flexible SmartVoltage Technology; (2)1.65 V–2.5 V or 2.7 V–3.6 V I/O Option; (3)High Performance; (4)Optimized Architecture for Code Plus Data Storage; (5)Flexible Block Locking; (6)Low Power Consumption; (7)Extended Temperature Operation; (8)128-bit Protection Register; (9)Extended Cycling Capability; (10)Standard Surface Mount Packaging.
Diagrams
 |
