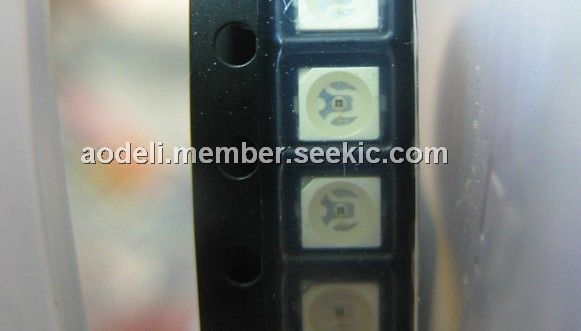

Product Summary

The VLMB31J2L2-GS0 is a Standard SMD LED PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. The applications of the VLMB31J2L2-GS0 include: (1)Automotive: backlighting in dashboards and switches; (2)Telecommunication: indicator and backlighting in telephone and fax; (3)Indicator and backlight for audio and video equipment; (4)Indicator and backlight in office equipment; (5)Flat backlight for LCDs, switches and symbols; (6)General use.

Parametrics

VLMB31J2L2-GS08 absolute maximum ratings: (1)Reverse voltage VR: 5 V; (2)DC Forward current IF: 20 mA; (3)Surge forward current IFSM: 0.2 A; (4)Power dissipation PV: 84 mW; (5)Junction temperature Tj: 100 ℃; (6)Operating temperature range Tamb: - 40 to + 100 ℃; (7)Storage temperature range Tstg: - 40 to + 100 ℃; (8)Thermal resistance junction/ambient RthJA: 350 K/W.

Features

VLMB31J2L2-GS08 features: (1)SMD LED with exceptional brightness; (2)Luminous intensity categorized; (3)Compatible with automatic placement equipment; (4)EIA and ICE standard package; (5)Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C; (6)Available in 8 mm tape; (7)Low profile package; (8)Non-diffused lens: excellent for coupling to light pipes and backlighting; (9)Low power consumption; (10)Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 1.6; (11)Lead (Pb)-free device; (12)Preconditioning: according to JEDEC level 2a; (13)ESD-withstand voltage: up to 1 kV according to JESD22-A114-B; (14)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

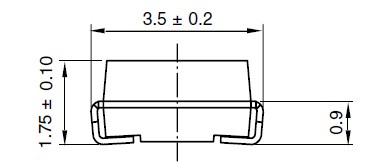

VLMB31J2L2-GS08 dimensions
