Product Summary

The HD64F2238RFA13 has an on-chip 8-bit timer module with four channels operating on the basis of an 8-bit counter. The 8-bit timer module can be used to count external events and be used as a multi-function timer in a variety of applications, such as generation of counter reset, interrupt requests, and pulse output with an arbitrary duty cycle using a compare-match signal with two registers.

Parametrics

HD64F2238RFA13 absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +7.0V; (2)Power supply voltage, CVCC -0.3 to +4.3V; (3)Input voltage (except ports 4 and 9), Vin: -0.3 to VCC+0.3V; (4)Input voltage (ports 4 and 9), Vin: -0.3 to AVCC+0.3V; (5)Reference power supply voltage, Vref: -0.3 to AVCC+0.3V; (6)Analog power supply voltage, AVCC: -0.3 to +7.0V; (7)Analog input voltage, VAN: -0.3 to AVCC+0.3V; (8)Operating temperature, Topr: -20 to +75℃; (9)Wide-range specifications: -40 to +85℃; (10)Storage temperature, Tstg: 55 to +125℃.

Features

HD64F2238RFA13 features: (1)High-speed H8S/2000 central processing unit with an internal 16-bit architecture; (2)Various peripheral functions; (3)PC break controller; (4)DMA controller (DMAC); (5)Supported only by the H8S/2239 Group.; (6)Data transfer controller (DTC); (7)16-bit timer-pulse unit (TPU); (8)8-bit timer (TMR).

Diagrams

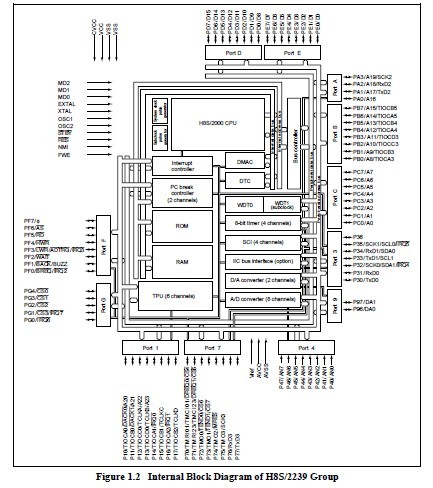

 HD64F2238RFA13 Internal Block Diagram
